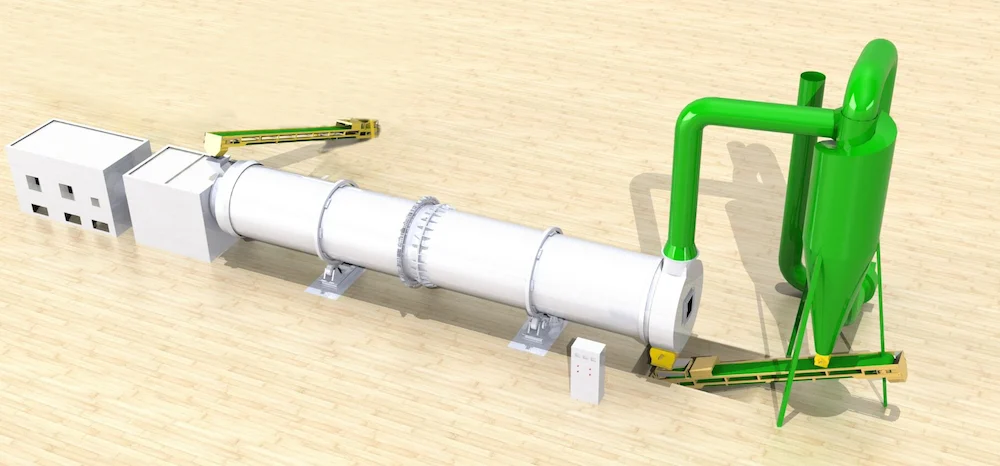

WOOD SAWDUST ROTARY DRYER
The main features of the multi-layer high-efficiency wood chip dryer are high output, high drying efficiency, and low drying cost, so it is often used in large wood sawdust pellet production lines.

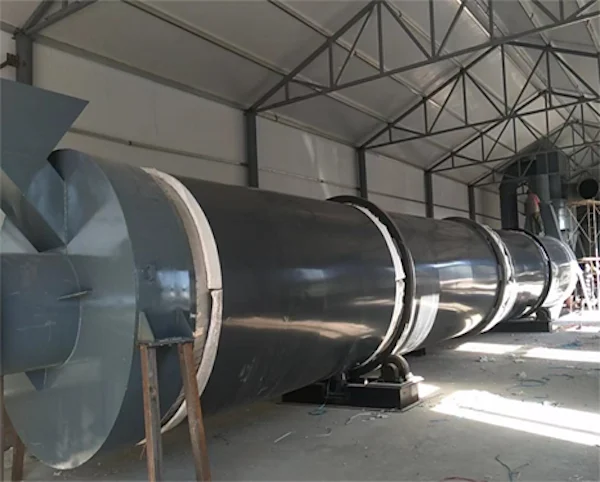

HIGH EFFICIENCY SAWDUST DRUM DRYER
Although the wood pellet machine is the most critical equipment in a wood pellet production line, for large wood pellet production lines, the dryer efficiency can directly determine whether your pellet factory can make a profit.

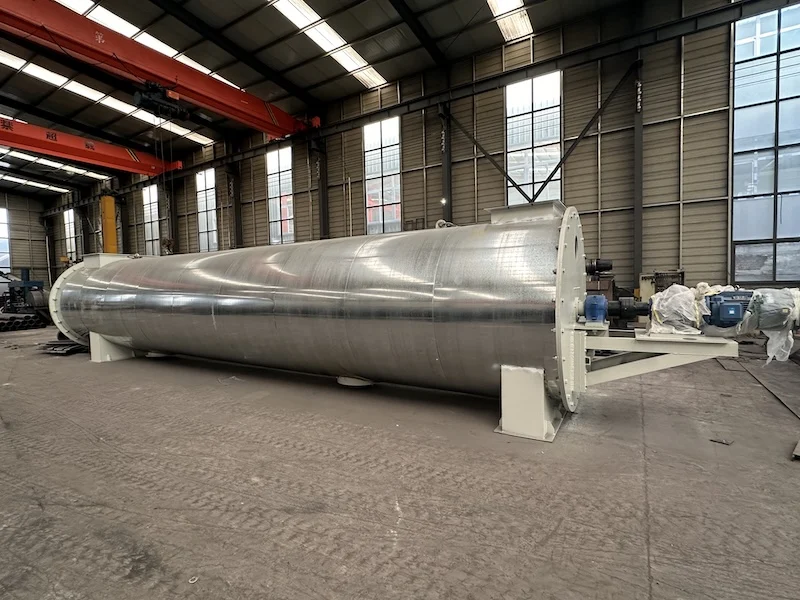

High efficiency wood sawdust dryer is ideal drying equipment for various high-humidity raw materials. it plays crucial role in the fuel pellet plant and briquetting plant, etc. The interior of the high-efficiency wood sawdust dryer is designed with multiple layers. The three layers of drying channels are running at the same time. The materials will be lifted up many times, but compared with the old three-drum dryer, the drying channel is greatly shortened, so the output is much higher.
WHY CHOOSE HIGH EFFICIENCY BIOMASS ROTARY DRYER?
High Efficiency for Wet Materials
- This rotary drum dryer is designed for high-humidity materials and is under high efficiency designing. It runs 24 hours continuously and ensure stable drying performance, maximize production efficiency and increased output.
- The sawdust dryer is equipped with top configuration, it can achieve stable drying results even for materials with a moisture content of 50-70%. It is an ideal choice for industrial biomass drying production lines.
Sawdust Dryer with The Lowest Drying Cost

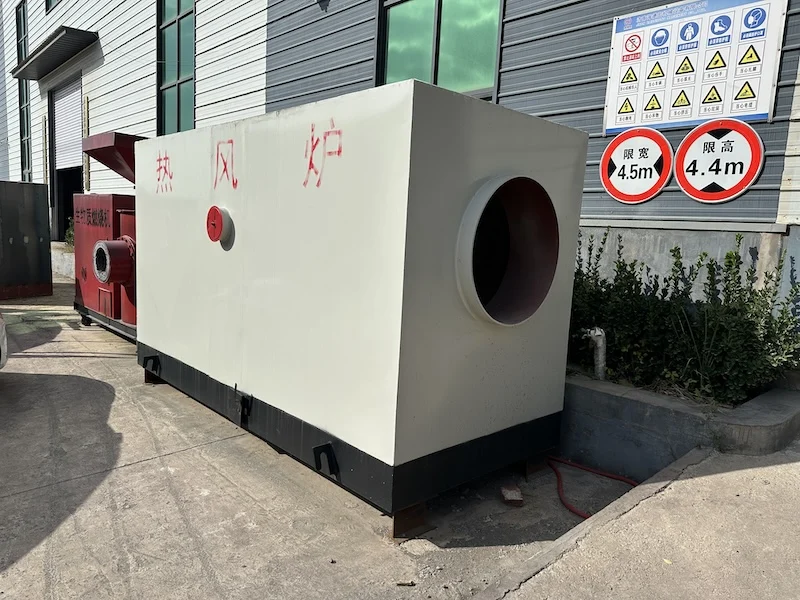

High-efficiency sawdust dryers reduce raw material drying costs to a minimum. This is primarily because the dryer uses wet wood or other biomass waste as its heat source, eliminating the need for extensive processing, resulting in low fuel costs. Furthermore, because the high-temperature air comes into full contact with the raw material in the shortest possible time, it achieves the fastest drying efficiency.
Automatic Feeding Saves Labor Costs

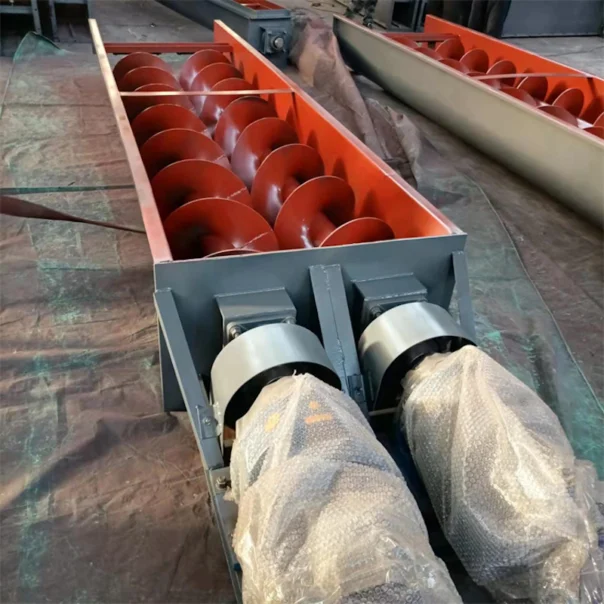

- The wood sawdust dryer is equipped with an intelligent control system and automatic underground feeder that enables automatic feeding . This automation not only ensures consistent drying performance, but also reduces the need for manual monitoring, minimizes human errors, and improves complete production efficiency.
- Compared with manual feeding, the output of the wood chip dryer is greatly improved, and the risk of fire caused by human wrong operation during operation is reduced.
TECHNICAL PARAMETERS
| MODEL | FAN POWER | CAPACITY |
| TCRD1200 | 7.5KW | 500-1,500KGS/H |
| TCRD1500 | 11-15KW | 1,000-2,000KG/H |
| TCRD1600 | 18.5-22KW | 2,000-3,000KG/H |
| TCRD1800 | 30KW | 3,000-4,000KG/H |
| TCRD2000 | 37KW | 3,000-5,000KG/H |
| TCRD2200 | 45KW | 4,000-6,000KG/H |
| KX-MD1600 | 37KW | 3,000-4,000KG/H |
| KX-MD1800 | 45KW | 4,000-6,000KG/H |
| KX-MD2200 | 55KW | 6,000-8,000KG/H |
TIPS: The wood drum dryer capacity is based on your raw materials and initial moisture content, etc. You can share your project info, and we will recommend a suitable model for you!
WHICH KIND OF RAW MATERIAL CAN BE APPLIED BY THE DRUM DRYER?
The high-efficiency large capacity wood drum dryer is specially designed to handle wet raw materials, making it ideal for biomass processing. It can efficiently dry materials such as wet wood sawdust, fresh wood sawdust, crushed tree bark, crushed green tree leaves, fresh sugarcane bagasse, crushed palm fiber, crushed green coconut husk, fresh agricultural waste, and crop straw, etc. We accept customization the dryer for your raw materials.

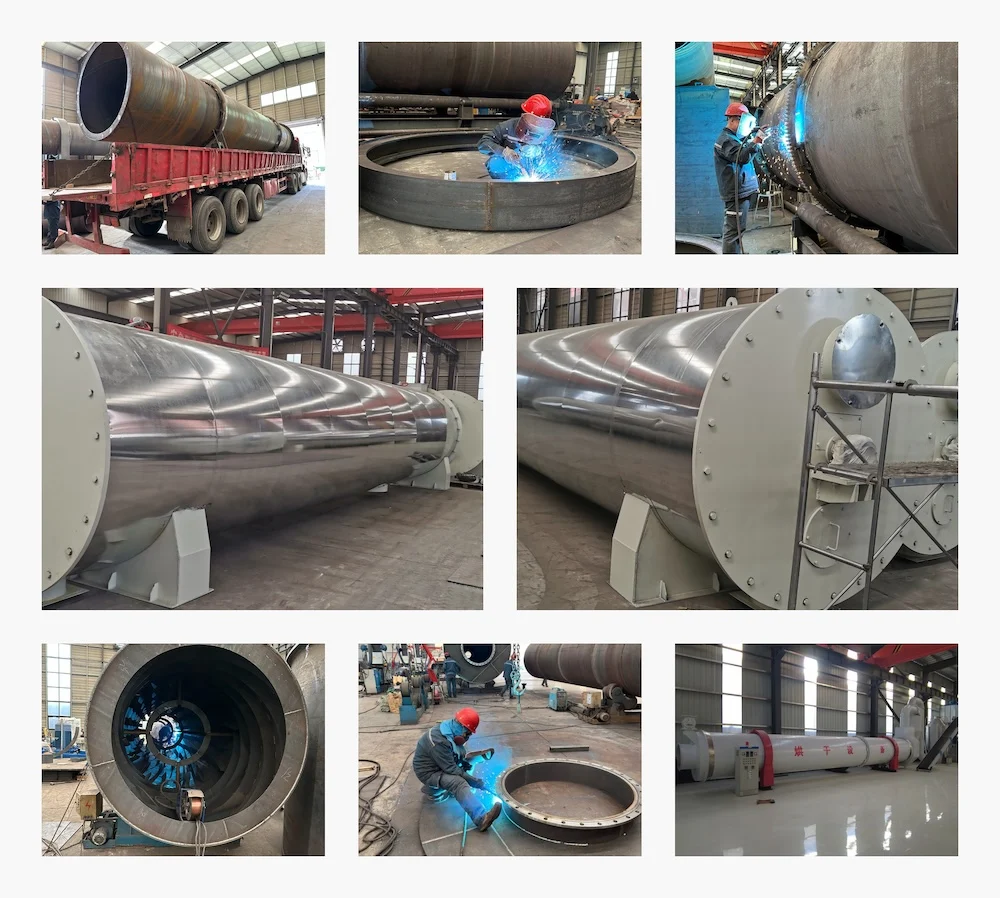

BIOMASS ROTARY DRUM DRYER MANUFACTURER
FREQUENTLY ASKED QUESTIONS
Can we use one dryer to dry different raw materials?
Yes. However, we need to check the fiber characteristics first, so please send your raw material pictures first.
What is the difference between the DD dryer model and the MD dryer model?
The MD dryer is more suitable for high-humidity materials, with high output and low energy consumption.
Do you have other smaller dryers or larger dryers?
Yes. The dryer is a customized machine and needs to be customized according to the characteristics of the raw materials. Otherwise, it’s easy to face the risk of fire or the problem of very high drying costs. You can send pictures of the raw materials, and we can customize the wood dryer based on your raw materials.
Get Your Solution
We focus on biomass waste to fuel plant for more than 20 years. Choose us and we will never let you down.
- Quick reply within 2 hours
- Provide the best pellet proposal within 24 hours.
- Free test run service for special raw materials
- Detailed case analysis after get your inquiry
