INDUSTRIAL WOOD PELLET MACHINE
Industrial wood pellet machines generally refer to ring die wood pellet machines with a power of more than 90 kilowatts and an output of more than 1 ton/hour. They have the characteristics of high output, stable operation, and continuous operation.

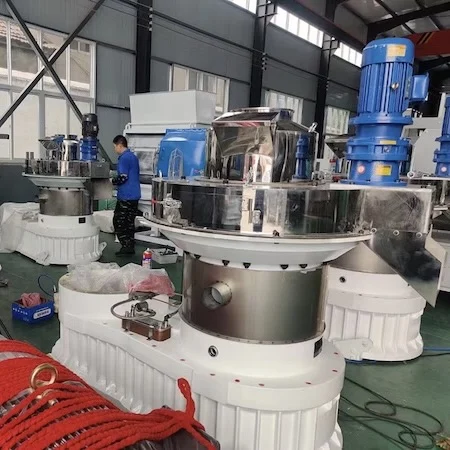

INDUSTRIAL WOOD PELLET MACHINE FOR SALE
The vertical ring die pellet machine is the best choice for the industrial production of wood pellets. It is popular among customers for its high output, stable operation and low failure rate.
The power of industrial pellet machines starts at 90 kW and can reach up to 280 kW maximum, but the most commonly used models are 132 kW and 250 kW. The 132 kW wood pellet machine has the highest market share, so both the machine and accessories have the highest cost performance. The 250 kW industrial wood pellet machine is more suitable for large-scale production lines with an output of more than 5 tons/h because of its high output, small footprint, and labor savings.

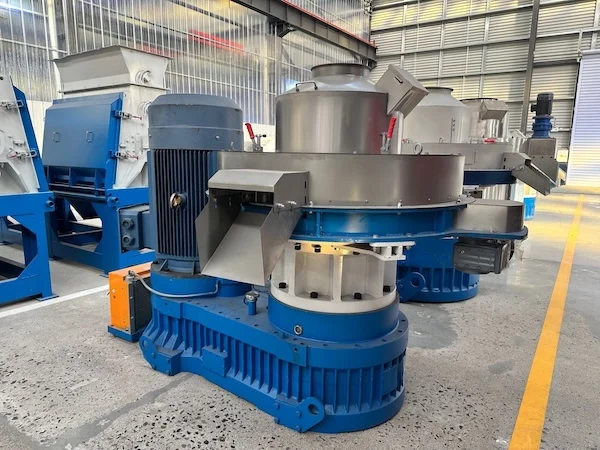

INDUSTRIAL WOOD PELLET MILL STRUCTURE
The structure, design and working principle are the key factors of a high-quality wood pellet machine
The industrial wood pellet mill consists of several key components, including:
- Stainless steel feed cover
- Pellet mill main motor
- Wood pellet discharging motor
- Heavy-duty three grade gear box
- Automatic lubrication system
- Lubrication cooling system
- PLC automatic control system
The above are the most important components of the wood pellet machine. Automatic lubrication can ensure the stable operation, the air cooling system can ensure the continuous operation, and the automatic control system can avoid machine blockage due to excessive feeding raw material.
In large-scale industrial production, the requirements for industrial pellet machines are completely different for small farms and home use pellet mill. Because the running time and working environments are completely different. In industrial production, a high-quality wood pellet machine needs to have the following characteristics:
- Stable output and low failure rate. This is the basic request, because this will directly determine the pellet production cost.
- Operate continuously and stably. This mainly depends on whether the pellet machine ring die designed is suitable for the current raw materials. It is easy to get stuck id not suitable. It is a challenge for manufacturers especially when using uncommon raw materials.
- Simple operation and convenient maintenance. Reasonable design, simple operation, and user-friendly for novice users are important factors when choosing a wood pellet machine.
TECHNICAL SPECIFICATION
| MODEL | TCZL560 | TCZL650 | TCZL560A | TCZL700 | TCZL850 |
| POWER | 90KW | 110KW | 132KW | 160KW | 250KW |
| CAPACITY | 1000-1200KG/H | 1200-1500KG/H | 1500-2000KG/H | 2000-2500KG/H | 3000-4000KG/H |
| APPLICATION | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet |
OTHER RAW MATERIALS USUALLY USED EXCEPT WOOD ?
Cow Dung
Husk and Shells
Building Waste
Palm Tree Waste
Waste Piastic & Textile
EFB
- Commercial pellet maker are highly versatile and widely used for processing various raw materials, primarily for industrial applications. Biomass waste: including sawdust, wood shavings, wood chips, bark, cotton, agricultural residues, rice husks, wheat straw, corn stalks, bagasse, sugar cane leaves, palm fiber, palm fruit bunches, coconut shells, peanut shells, bamboo, waste wood boards, etc. Industrial waste: including soft and hard plastics, old clothes and fibers, etc. Animal and agricultural by-products: chicken manure, cow dung, and other types of organic waste are processed into fertilizer pellets to promote sustainable agriculture.
- With 12 years of experience in industrial ring die pellet mill for sale, we offer exclusive, customized services tailored to your needs. Our machines feature top configurations, with molds and motors optimized for the size, moisture, and output of your raw materials, ensuring high efficiency and stable operation. Designed for versatility, one machine can produce fuel, feed, and fertilizer pellets. Additionally, we provide expert guidance to enhance machine performance.
MARKET OF FUEL PELLET
Rice Straw Pellet for Boiler

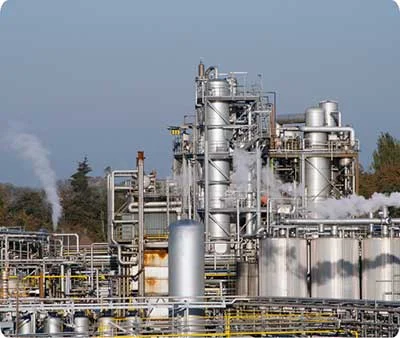

Wood Sawdust for Power Plant

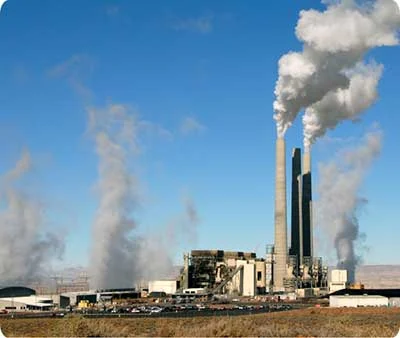

Plastic Pellet for Oil Refinery

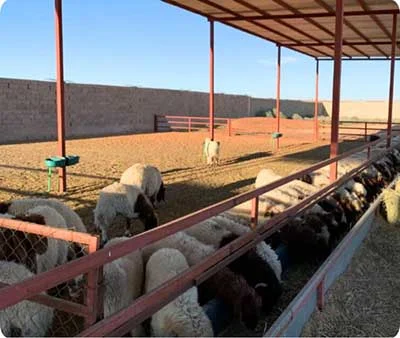

Feed Pellet for Animis
Organic Fertilizer Pellet for Planting
Biomass Pellet for Heating
COMMERCIAL WOOD PELLET PLANT PROJECT CASE
2T/H Wood Pellet Press For Sale
- Capacity:2T/H for complete pellet production line.
- Including: wood pellet mill, rotary screen, conveyor system,ect.
- Raw material: wood sawdust, wood chips.
- Moisture & Size: moisture content within 15-20%, no more than 10MM, just have wood chips.
- Voltage & Frequency:380V, 50HZ
1.5-2T/H Biomass Pellet Machine Plant
- Capacity:1.5-2T/H biomass pellet production line.
- Including: biomass pellet mill, conveyor system,ect.
- Raw material: Wood sawdust, rice husk,
- Moisture & Size: Moisture content within 15-20%, no more than 10MM.
- Voltage & Frequency:380V, 50HZ

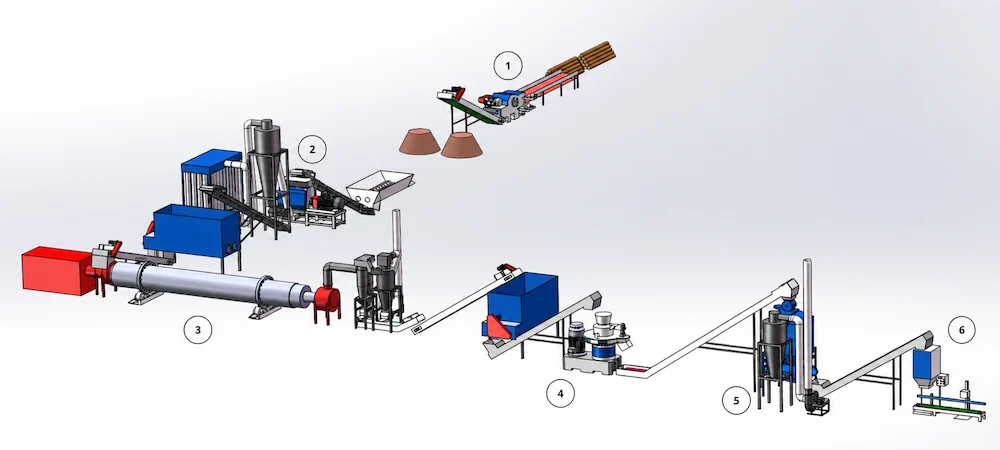

FLOW DIAGRAM OF COMPLETE INDUSTRIAL PELLET PLANT
Wood Chipper : ① Wood Chipping machine, which are designed to efficiently chip large pieces of wood waste, such as wood logs, branches into smaller uniform wood chips.
Wood Crusher: ② Wood hammer mill, it suitable for wood blocks, wood chips, palm leaves, agriculture waste, etc. final raw material can reach 3-10mm size through customized inner screens. The wood crusher is equipped with heavy hammers, cyclone, fan and dust collector.
Drum Drying Machine: ③ rotary dryer, it can dry very high-moisture materials, making sure the output moisture content is about 15-20%. It is equipped with adjustable temperature and airflow control devices to adapt to different types of biomass and ensure consistent drying performance.
Industrial Wood Pellet Machine: ④ it can make various biomass materials into pellets. Such as wood chips, sawdust, agricultural residues, and even waste plastics. These pellets are usually used as fuel for biomass boilers, animal feed, or fertilizer, depending on the material and production requirements.
Cooling and Packing System: ⑤The pellet cooling machine is equipped with a vibrating screen to remove pellet dust, and an ⑥ automatic wood pellet packaging machine can pack pellets in small or big bags.
FREQUENTLY ASKED QUESTIONS
What investment is required to establish commercial wood pellet production plant?
It depends on several factors, including the scale of production, the kinds of raw materials, and the specific equipment， for a simple line, about 90,000USD-130,000USD. You can contact us to get a detailed proposal.
Do I need touse chemicals as binder when making pellets?
No need any binder. We can customize the pellet machine for high-quality and high-density pellets.
How long is the warranty period and after-sales service?
One year, not including the wear parts. We provide detailed installation and test run support online service also.
