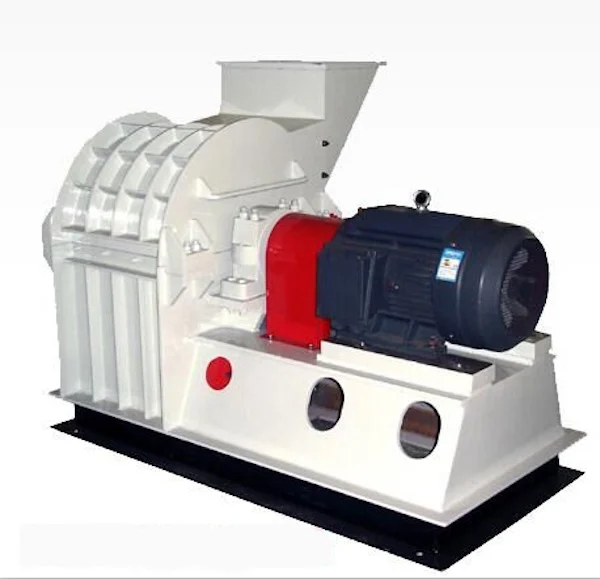

BIOMASS WOOD CRUSHER WITH FORCED FEEDING SYSTEM
The forced-feed biomass crusher is a multi-functional small biomass crusher, also known as a multi-functional wood crushing machine. It is suitable for materials with relatively long dimensions, such as wood strips, branches, and waste veneer.
MULTIFUNCTIONAL BIOMASS CRUSHING MACHINE

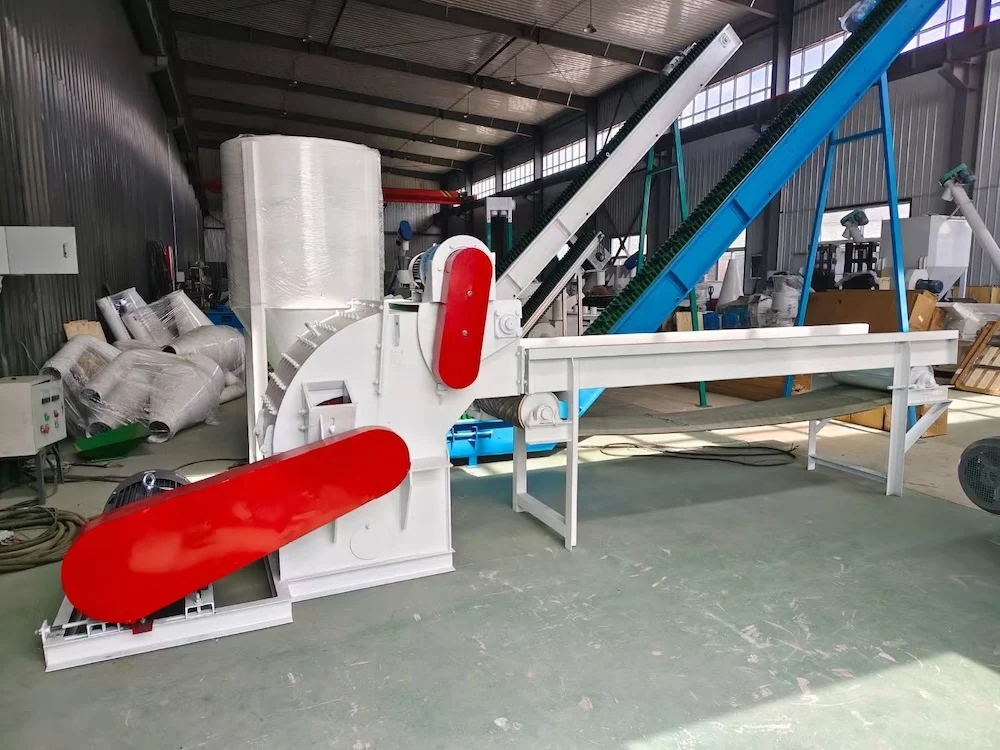

The biomass wood crusher provides a one-stop solution for making wood sawdust. It has a compact design and can crush both branches and wood chips, making it versatile.

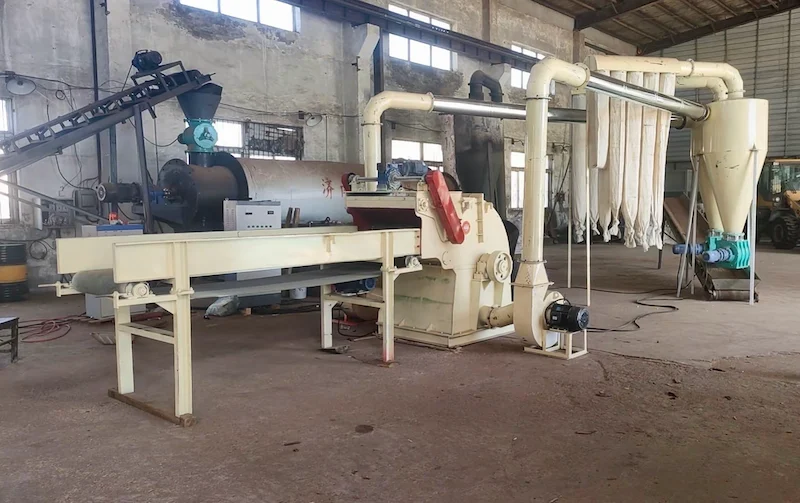

The biomass crushing machine main motor starts from 22kw to 75kw, it’s based on your capacity needs and also your raw material original size. It’s consist of forced feeding system, cyclone, airlock and dust collector, making it environmentally friendly. It can efficiently crush small branches, logs, and wood chips, the maximum of wood branches or logs diameter no more than 8-10cm. Its compact design makes it’s ideal for limited workshops, making it a perfect choice for small pellet production lines.
WHY CHOOSE THIS CRUSHER WITH FORCED FEEDING SYSTEM?

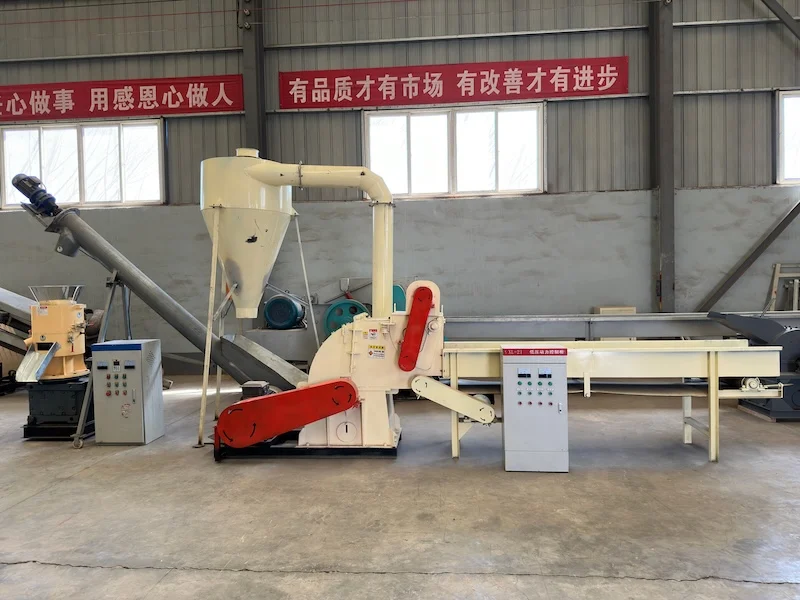

With Forced Feeding System
The crusher is equipped with a forced feeding system. When crushing long pieces of wood, straw, branches, etc., it can hold the raw materials and feed them slowly without causing blockage. At the same time, the raw materials will not splash out of the raw material outlet, making the working environment safer.
Compact Structure Space-Saving
If your workshop has limited space, the wood sawdust hammer mill with its compact design is an ideal choice. Most importantly, it provides a one-stop solution from wood processing to sawdust, saving the cost of a separate chipper. The final product is sawdust under 10mm, ready for direct use in pellet machines, so it’s a perfect machine for small pellet plants.
Low Maintenance Cost and Failure Rate
- This small biomass crusher can meet stably running. and the failure rate is very low. The hammer blades undergo special high-temperature treatment for wear and corrosion resistance, ensuring long service life.
- The low daily maintenance costs is very low, the machine delivers outstanding durability and cost efficiency, making it an ideal choice for long-term operation
TECHNICAL PARAMETERS OF WOOD CRUSHER
| Model | Power(kw) | Capacity(kg/h) | Number of blades(pieces) | Feed conveying(m) | Dimension(mm) |
|---|---|---|---|---|---|
| TCFM500 | 22 | 300-600 | 40 | 3 | 1850x1200x920 |
| TCFM600 | 37 | 600-1000 | 40 | 3 | 2400x1600x1250 |
| TCFM800 | 55 | 1000-2000 | 56 | 3 | 2800x2000x1500 |
| TCFM1000 | 90 | 2000-3000 | 72 | 3 | 3200x2400x1680 |
| TCFM1300 | 132 | 3000-5000 | 72 | 3 | 3200x2400x1680 |
TIPS: If you would like to know more details about this machine, please feel free to contact us at any time. You can send more details about your project, we will recommend the suitable model for you.
WHAT RAW MATERIAL CAN BE PROCESSED BY THE SMALL BIOMASS CRUSHER？
The all-in-one biomass crusher machine is suitable for various raw materials. It is equipped with a force-feeding system to ensure stable and continuous raw material input. It can efficiently crush 5cm diameter wood (maximum ≤ 8 cm). The wood sawdust output size can be adjusted flexibly between 3 and 10 mm by changing the screen, to meet your different needs.
If your raw material is small wood logs (diameter within 8cm), wood branches, wood sticks, bamboo, waste fruniture small pieces, MDF, plywood, small wood scraps, small wood chips, wooden veneer, coconut husk, paper waste, carton boards, corn stalk, rice straw, waste straw, etc, you can use this machine. Or you can send your raw material to us, we will recommend the suitable model for you.

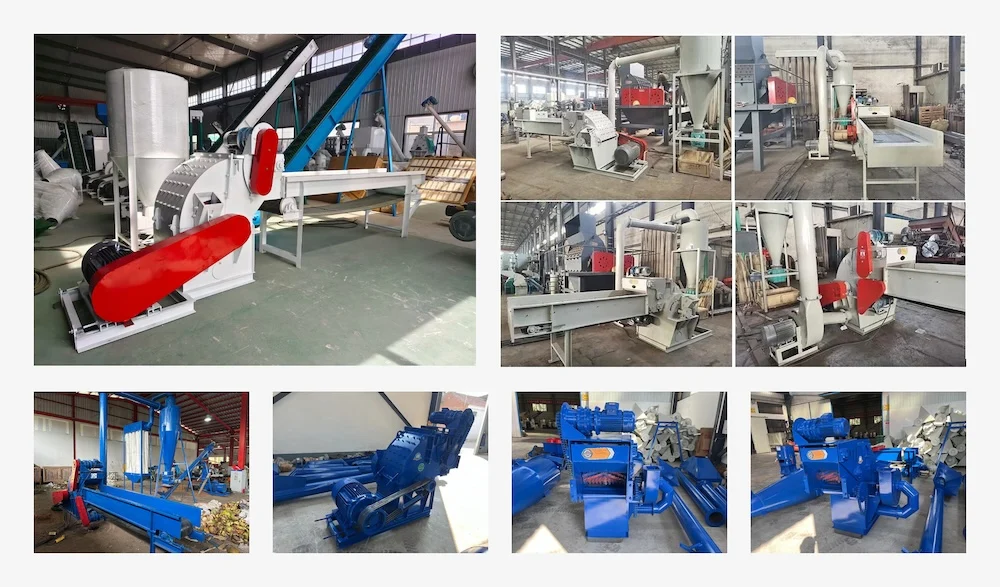

WOOD CRUSHER MACHINE MANUFACTURER
RELATED MACHINE
FREQUENTLY ASKED QUESTIONS
Why is it called an All-in-One Crusher Machine?
Because it can crushing the biomass from long pieces to 10mm in one step — saving you cost, space, and time.
What is the final wood sawdust size of the crushed material?
The final size is adjustable between 3–10 mm by changing the screen. We can customize it based on your needs.
What is the maximum feeding size?
It can process the hard wood logs with diameter of no more than 6-8 cm, .if loose raw material, the raw material could be bigger.
