Feed Pellet Machine Manufacturer for Farm and Feed Mill Projects
TCPEL TCF inclined-roller feed pellet machines serve farms, feed mills and commercial animal-feed projects using prepared formulas. The suitable model depends on formula, target output, pellet diameter, voltage and daily working hours. The approved range runs from 200–300 kg/h for TCF150 to approximately 3 t/h for TCF550.
Keep the original process layout, then match the TCF model
Feed-process selection
Start with the feed formula, target output, pellet diameter, moisture, daily working hours, voltage and destination port. A single TCF machine suits buyers who already have suitable grinding and mixing; a complete line may add a hammer mill, mixer, conveyor, cooler, screener and packing machine.
Prepare material
Crush ingredients to a suitable size and control moisture for the formula.
Mix evenly
Uniform mixing helps stabilize nutrition, moisture and pellet quality.
Pelletize
Select model and die diameter by output, animal type and formula.
Cool and pack
Continuous commercial production normally cools, screens and packs pellets.

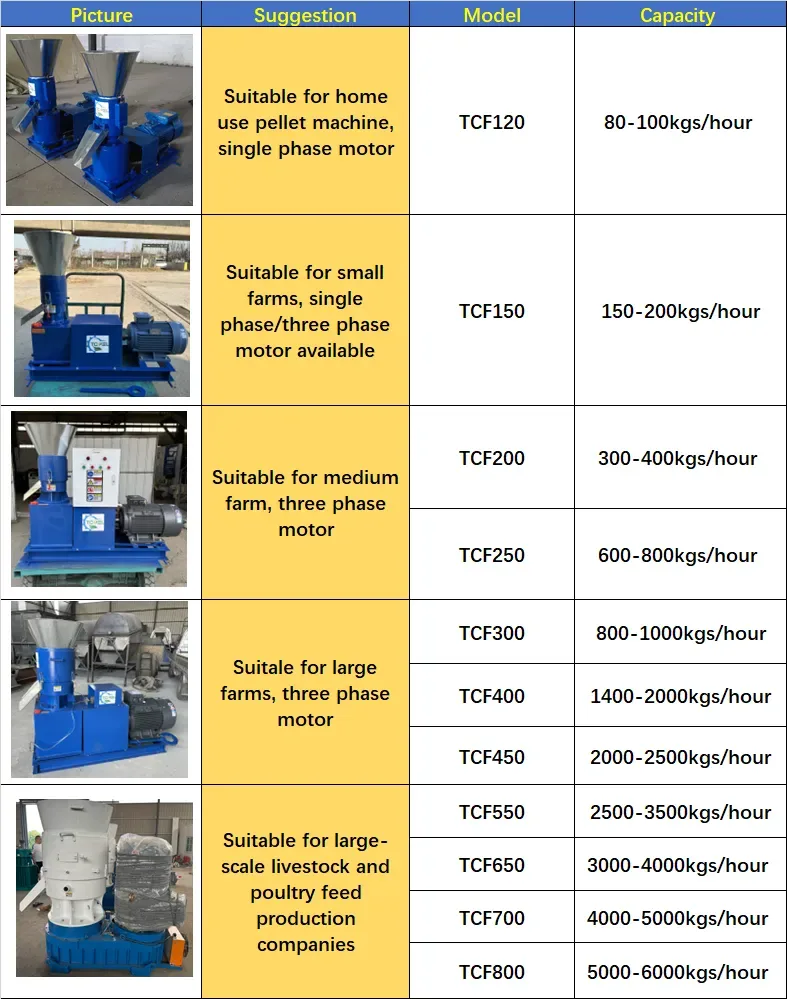

Feed pellet machine models and specifications
TCF series reference
Use the table as a model-selection starting point. Capacity varies with formula, particle size, moisture, pellet diameter, die condition and operating method.
| Model | Capacity | Roller Type | Power | Voltage(V) | Weight | Dimension(mm) |
|---|---|---|---|---|---|---|
| TCF150 | 150-200kgs/h | Inclined two rollers | 7.5kw | 380V，50/60HZ, 3PHASE | 190kgs | 1220*620*840 |
| TCF200 | 300-400kgs/h | Inclined two rollers | 11kw | 380V，50/60HZ, 3PHASE | 270kgs | 1420*670*1100 |
| TCF250 | 600-800kgs/h | Inclined two rollers | 15kw | 380V，50/60HZ, 3PHASE | 480kgs | 1660*740*1220 |
| TCF300 | 800-1000kgs/h | Inclined two rollers | 22kw | 380V，50/60HZ, 3PHASE | 650kgs | 1830*880*1560 |
| TCF350 | 1000-1200kgs/h | Inclined two rollers | 30kw | 380V，50/60HZ, 3PHASE | 750kgs | 1960*920*1680 |
| TCF400 | 1400-2000kgs/h | Inclined two rollers | 37kw | 380V，50/60HZ, 3PHASE | 900kgs | 2550*980*1600 |
| TCF450 | 2000-2500kgs/h | Inclined two rollers | 45kw | 380V，50/60HZ, 3PHASE | 1500kgs | 2780*1100*1700 |
| TCF550 | 2500-3500kgs/h | Inclined three rollers | 75kw | 380V，50/60HZ, 3PHASE | 1800kgs | 2900*1300*1900 |
| TCF650 | 3000-4000kgs/h | Inclined three rollers | 90kw | 380V，50/60HZ, 3PHASE | 2100kgs | 2950*1500*2000 |
| TCF700 | 4000-5000kgs/h | Inclined three rollers | 110kw | 380V，50/60HZ, 3PHASE | 2500kgs | 3000*1600*2100 |
| TCF800 | 5000-6000kgs/h | Inclined three rollers | 132kw | 380V，50/60HZ, 3PHASE | 2900kgs | 3150*1800*2200 |
Approved common die-hole references are 2.5, 4, 6, 8, 10 and 12 mm. Final voltage, frequency, phase, motor configuration and pellet diameter are confirmed for the destination and feed formula. Output changes with formula, grinding fineness, moisture, die condition, feeding and operation.

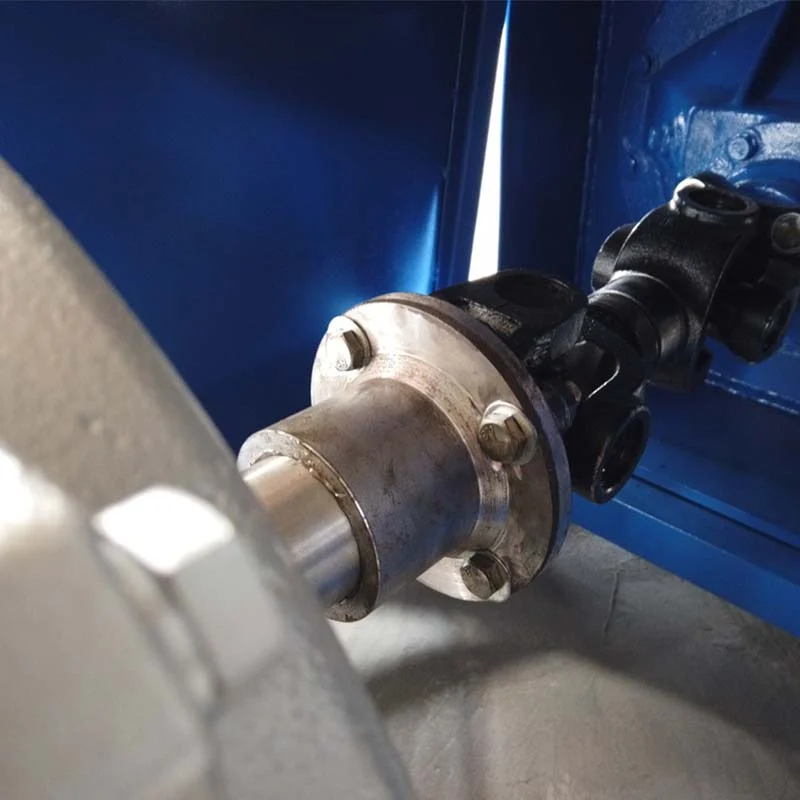

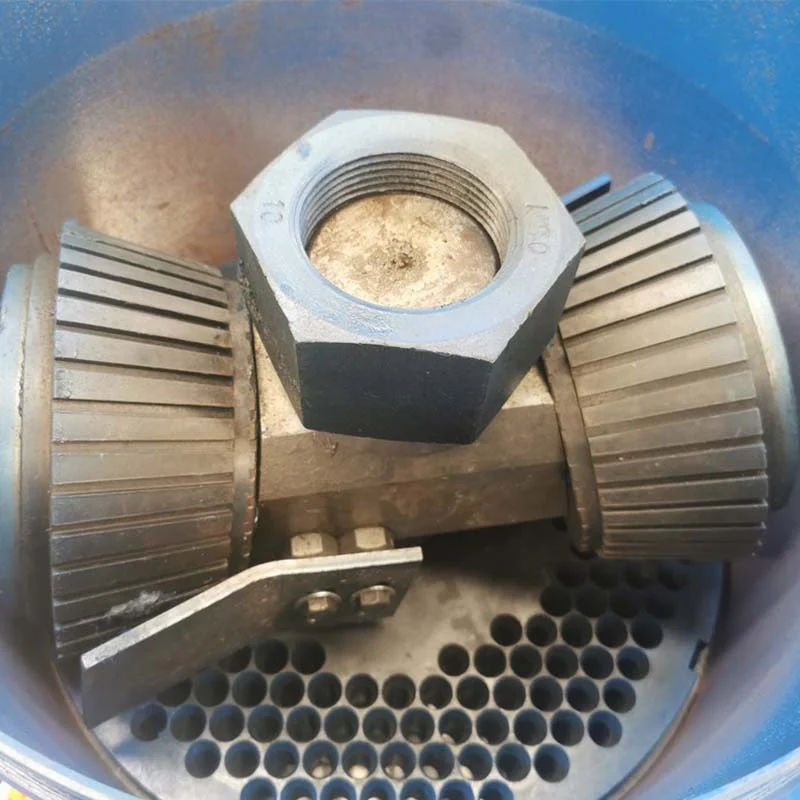

Inclined-roller structure and routine maintenance
The die, rollers, transmission and lubrication points should be checked before operation. Wear-part life depends on formula, abrasiveness, working hours and maintenance.
Frequently asked questions
Questions buyers ask
Which die-hole sizes are commonly used with the TCF series?
The approved common range is 2.5 mm, 4 mm, 6 mm, 8 mm, 10 mm and 12 mm. The final size depends on the feed formula and animal requirement.
Can a TCF feed pellet machine be presented as a wood pellet machine?
No. The TCF series is primarily for feed and suitable applications for its structure; it must not be presented as a universal wood, biomass or RDF machine.
What information is required before selecting a feed pellet machine?
Send the raw material, moisture, incoming size, required output, pellet specification, local voltage, daily working hours and destination port.
Is the published output for a feed pellet machine guaranteed for every material?
No. Output changes with material, moisture, particle size, die specification, feed stability, operating method and equipment condition.
Can TCPEL provide supporting equipment?
Yes. The useful scope may include size reduction, drying or conditioning, conveying, cooling, screening and packing, but only the stages required by the project should be selected.
How is the local power supply confirmed?
Voltage, frequency, phase, available transformer capacity and motor configuration are checked before the technical proposal is finalized.
When should I contact a TCPEL engineer about feed pellet production?
Contact TCPEL before purchase when material condition is uncertain, the line must run continuously, pretreatment is unclear or existing equipment must be integrated.

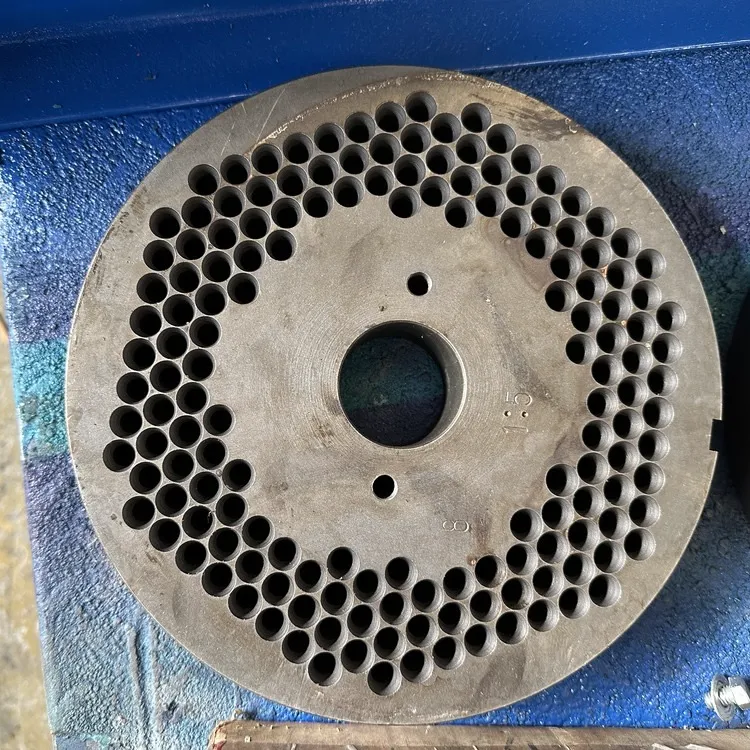

Match pellet size to animal age and formula
Pellet diameter guidance
The approved common die-hole references are 2.5, 4, 6, 8, 10 and 12 mm. Select the final diameter from the animal stage, formula and feeding practice; do not infer a guaranteed capacity from die-hole size alone.
Raw material must be ground and mixed consistently before pelletizing. The correct moisture and conditioning depend on the actual ingredients and should be confirmed from the formula rather than copied from another feed.
Build the process around your feed formula
Single machine or complete line
A small farm may need only a mixer, conveyor and feed pellet machine. Commercial production may add grinding, cooling, screening and packing so every process stage matches the target capacity.
Feed pellet machine price depends on model, motor, voltage, die and roller scope, auxiliary equipment and shipping. TCPEL does not publish an invented fixed price because the useful quotation depends on the confirmed project scope.
Request a TCF Feed Pellet Machine Recommendation
Send formula or raw-material details, moisture, incoming size, target output, pellet diameter, voltage, daily working hours and destination port. TCPEL will compare a single machine with the supporting equipment the project actually needs.
