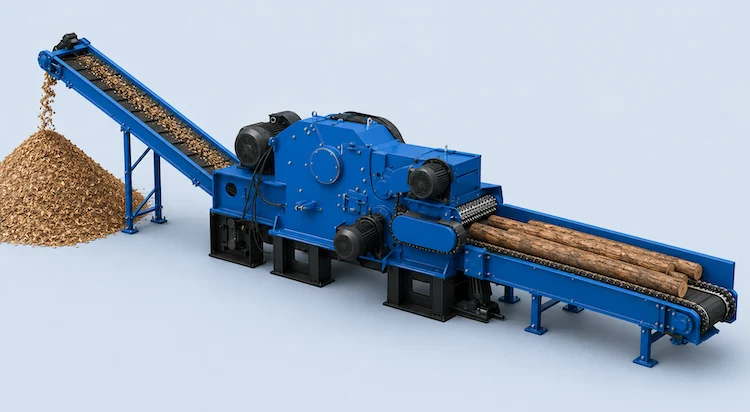

DRUM WOOD CHIPPER
Drum Wood Chipper Is A Professional Wood Processing Equipment. Processing Wood Logs, Branches, and Waste Wood Into High-Quality Wood Chips for Biomass Fuel and Industry Factory.
DRUM TYPE WOOD CHIPPER FOR SALE
The drum wood chipper is specialized woodwork equipment to produce wood chips. It ensuring stable performance, high capacity, and low maintenance cost.
Drum chipper is a wood processing machine mainly used for processing waste wood and other biomass waste. It uses a drum type rotor, and the automatic feeder can feed the raw materials into the feed port, and the wood is crushed into 3-5 cm long wood chips by cutting.
The heavy duty drum type wood chipper with top configuration, and high raw material adaptability. It can continuously work, and the maintain cost is lower, making it an ideal solution for you. The wood chipper widely use for furniture factories, industrial, medium and high density board factory and power plants etc.
WOOD CHIPPER’S STRUCTURE AND COMPONENTS
The wood chipper system includes feeding framework, main chipper machine, discharging belt conveyor, control panel etc.
Your raw materials feeds into the machine by the feeding framework, then the flying blades are installed on the knife roller to chip small chips. The number of blades based on the type and characteristics of your raw materials, ensuring optimal chipping performance. Then wood chips fall out through the screen and are transported smoothly by the discharge belt conveyor. The entire process is straightforward and highly efficient, significantly improving productivity.
UNIQUE ADVANTAGES OF THE WOOD CHIPPER MACHINE
Heavy Duty Design Ensures Stable Running
The working principle of the chipper is simple, so it runs very stably. Our main machine is made of high-quality steel plates, with strong welding, a reasonable feeding system design, and the hardness of the internal roller blade is designed according to the characteristics of the raw material fiber. Therefore, the operation is very stable. Most customers can achieve 24-hour stable operation. The only thing that needs to be done for the whole machine is regular lubrication, so maintenance is also very simple.
Top Configuration You Can Find In the Market
We think the design and configuration of the chipper determine whether the machine can work efficiently and stably. We sell at least several hundred of this machine every year, and the failure rate is very low. We think this is because we use the best configuration. All our rotors have undergone strict dynamic balancing inspections, use big-name motors, and the blades are made of wear-resistant alloy steel, with a service life more than twice that of ordinary ones.
Customized Machine to Meet Your Raw Material
Different wood materials have different moisture and hardness, so the suitable knives and screens, as well as the output that can be achieved are completely different. In order to maximize the wood chipping machine output, we will customize the feeding system according to your raw material size, moisture and type, and even the shape of most raw materials, which will minimize the processing cost of raw materials. The best wood chipper is not necessarily the most expensive, but it must be the most suitable for your raw materials.

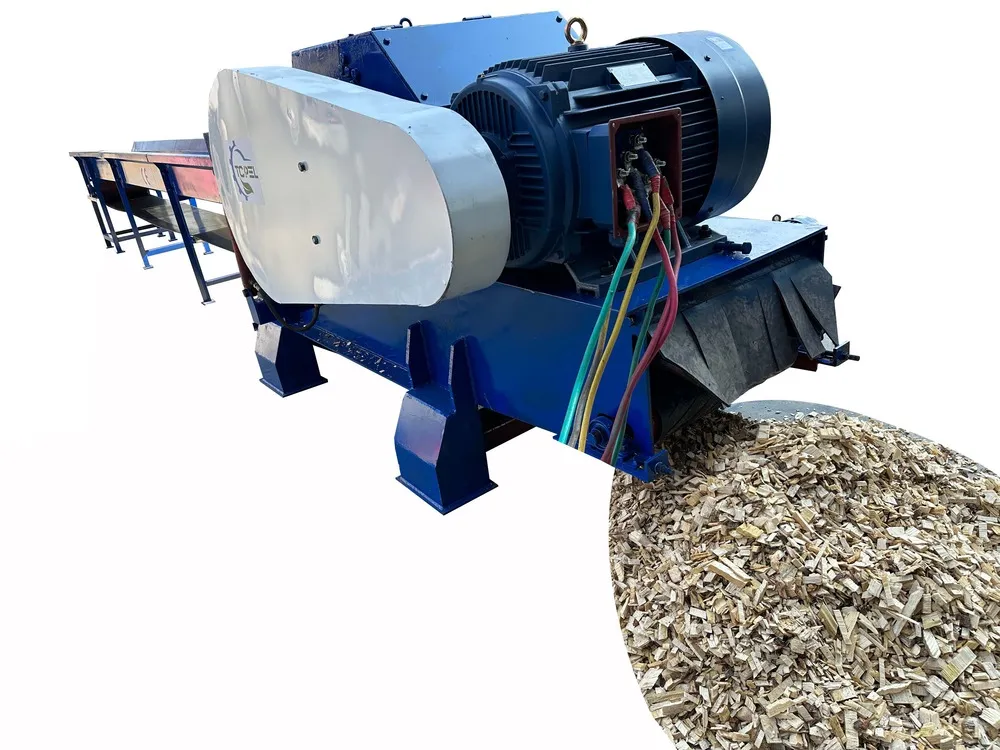

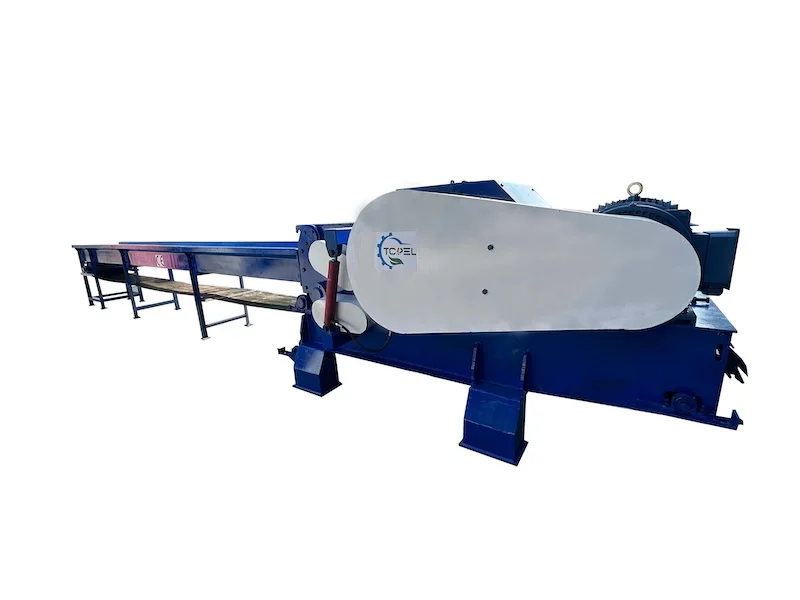

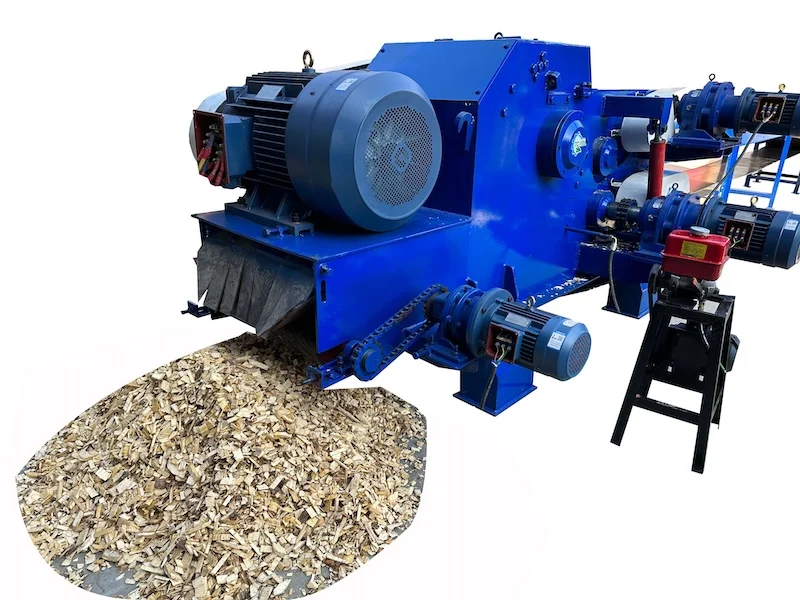

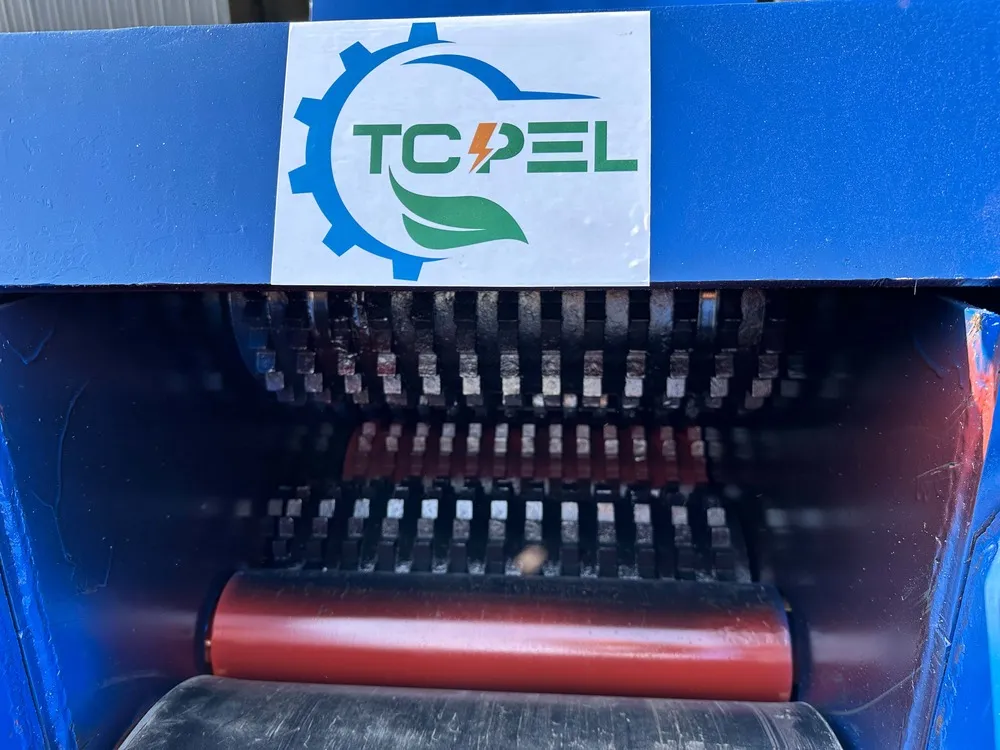

DETAILS DISPLAY OF INDUSTRIAL WOOD CHIPPER
TECHNICAL SPECIFICATIONS OF THE WOOD CHIPPER
| Model | TC216 | TC217 | TC218 | TC2110 | TC2113 | TC2113D | TC4113 | TC2116 |
|---|---|---|---|---|---|---|---|---|
| Main motor (kw) | 55 | 75 | 110 | 160/185 | 200/220 | 250 | 315/450 | 400/600/710 |
| Infeed roller motor (kw) | 4+3 | 4+4 | 4+4 | 7.5+7.5 | 7.5+5.5 | 15+11 | 15+11 | 18.5+18.5 |
| Discharge conveyor belt motor (kw) | 3 | 3 | 3 | 7.5 | 7.5 | 7.5 | 11+7.5 | 15 |
| Oil pump motor (kw) | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 | 3 |
| Feeding size (mm) | 230×540 | 230×700 | 350×700 | 450×1000 | 450×700 | 450×1000 | 450×1300 | 750×1200 |
| Feeding speed (m/min) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Max dia of log material (mm) | 230 | 230 | 300 | 400 | 400 | 450 | 450 | 600 |
| Rotor diameter (mm) | 600 | 600 | 800 | 1000 | 1300 | 1300 | 1300 | 1600 |
| Knife roller speed (rev) | 550 | 590 | 540 | 530 | 420 | 420 | 355 | 350 |
| Flying knives qty (pcs) | 2 | 2 | 2 | 2×3 | 3 | 2×3 | 2×3 | 4×3 |
| Bottom knives qty (pcs) | 1 | 1 | 1 | 2×1 | 1 | 2×1 | 2×1 | 4×1 |
| Wood chip size (mm) | 30-50 | 30-50 | 30-50 | 30-50 | 30-50 | 30-50 | 30-50 | 30-50 |
| Capacity (t/h) | 3-5 | 5-7 | 6-10 | 12-15 | 16-20 | 20-30 | 35-50 | 30-60 |
| Feeding belt conveyor size (mm) | 4000 | 4000 | 6000 | 6000 | 6000 | 6000 | 8000 | 5000 |
| Discharge belt conveyor size (mm) | 6000 | 6000 | 8000 | 11000 | 11000 | 11000 | 11000 | 11000 |
| Main machine size(mm) | 1800x1900x 1210 | 2600x2150x 1400 | 2200x2150x 1500 | 3150x2799x 1497 | 3670x2517x 2050 | 4080x3000x 2050 | 3550x2300x 1900 | 4500x3100x 2600 |
Customization accept based on customer’s different kinds of raw material and final chip size request.
WHAT RAW MATERIAL SUITABLE FOR WOOD CHIPPER?
Electirc wood chipper are versatile, they can be processed directly into wood chips for boiler combustion, power generation, etc., or as pre-processing equipment for pellet production lines. They and can process a wide range of raw materials. Usaully, for the wood materials, the maximum diameter size within 50CM, the other biomass waste based on the actual condition.
- Wood logs • Waste Paper
- Wood board • Hardwood
- Medium Density Fiberboard (MDF) • Softwood
- Wood veneer • Pine tree
- Wood pallet • Plywood
- Wood Branches • Furniture waste
- Coconut husk • Agriculture waste
- Bamboo • ……
- Palm tree
- Palm tree leaves

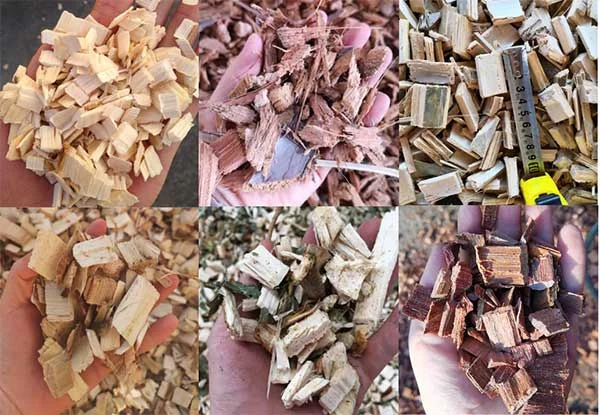

DIFFERENT SIZES OF FINAL WOOD CHIPS
The wood chipper can process different sizes based on your raw materials and needs.
If you have special requirements for the size or shape of the final wood chips, we will provide customized services to meet your needs. By adjusting the blades and screener of wood chips making machine, whether you need smaller or larger, uniform chips etc, we can do it!
FREQUENTLY ASKED QUESTIONS
Can the wood chipper handle different sizes of wood?
Yes, wood chippers are designed to process logs, branches, and other wood materials with a maximum diameter of 50cm. If you need to handle larger sizes, please let us know for customization options.
What is the production capacity of the wood chipper for sale?
Usually the capacity is about 2-40t/h, the capacity based on your raw materials, machine model, final wood chips size etc. You can tell us more information, we will recommend the suitable model for you.
Is the wood chipper driven by electricity or diesel?
Both are fine. It depends on your actual conditions such as electricity costs in your locally, application location, outdoor forest or factory workshop.
